Detection and attribution in stratospheric ozone recovery

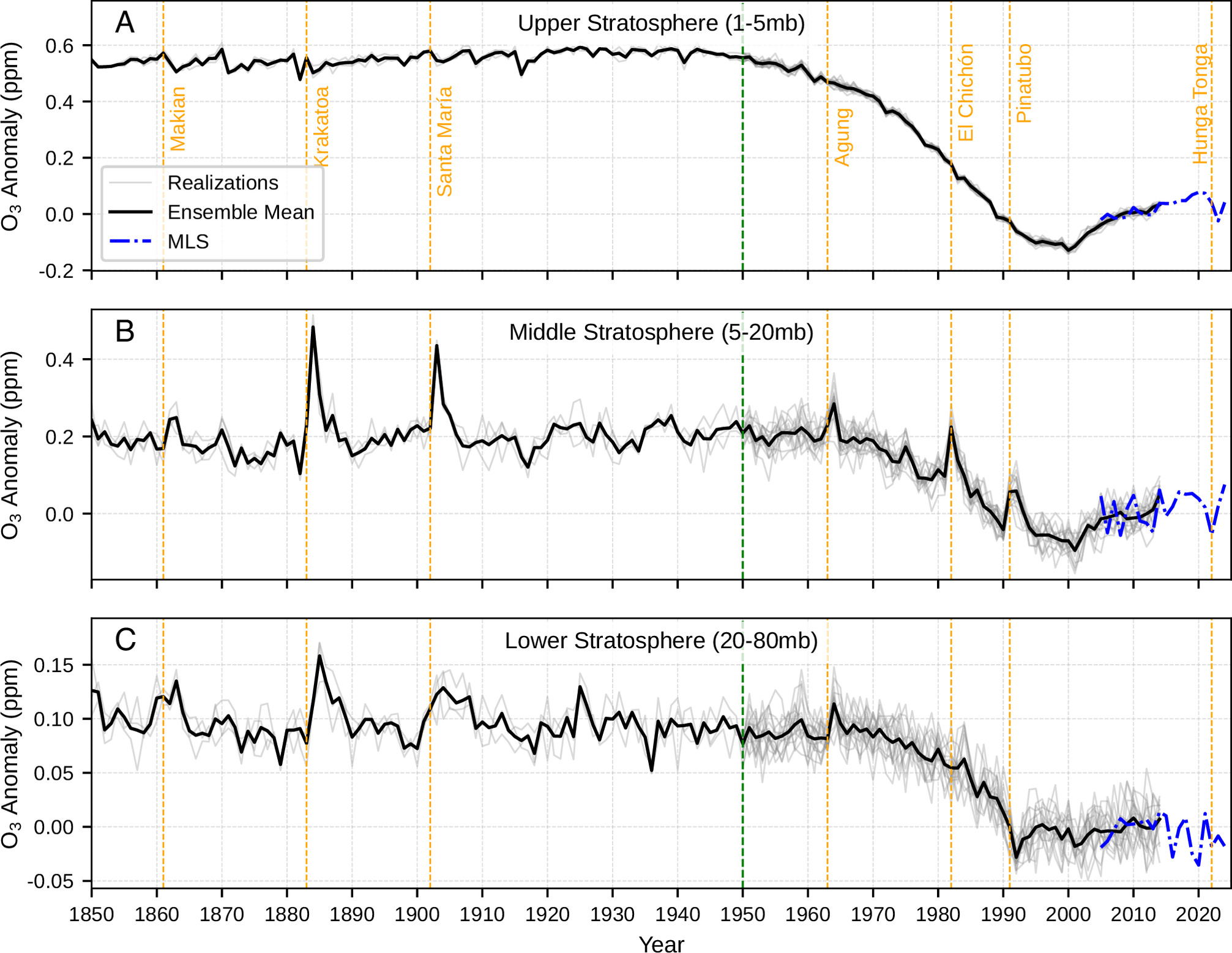

The Antarctic ozone hole was first reported in 1985, and small ozone losses at the global scale were also observed in the late 1980s. The combination of field and laboratory measurements, together with modeling, quickly established anthropogenic chlorofluorocarbons (CFCs) as the cause of both the Antarctic and global ozone depletion. However, when, where, and why the earliest ozone depletion could have been detected has not been determined. Here, we conduct a thought experiment to investigate when human-induced ozone depletion could have first been detectable, assuming the availability of accurate stratospheric ozone observations from 1950 onward. We find that human-caused ozone depletion was likely identifiable as early as 1957 in the tropical upper stratosphere. This region?s low internal variability enables the earliest detection of the anthropogenic signal, even though tropical ozone losses in the upper stratosphere were smaller than those in higher-latitude regions. Our results highlight the key role of considering both internal variability (“noise”) and the forced response (“signal”) in detection studies. Further, while CFCs are widely recognized as the primary drivers of current ozone depletion, we find that early ozone loss was primarily caused by human-made carbon tetrachloride (CCl4), used mainly as a solvent. These findings suggest that a clear human influence on the stratospheric ozone layer began nearly 70 y ago, even before substantial emissions of CFCs from spray cans or air conditioning.

The Antarctic ozone ‘hole’ was discovered in 1985 and man-made ozone-depleting substances (ODSs) are its primary cause. Following reductions of ODSs under the Montreal Protocol, signs of ozone recovery have been reported, based largely on observations and broad yet compelling model–data comparisons. Although such approaches are highly valuable, they do not provide rigorous statistical detection of the temporal and spatial structure of Antarctic ozone recovery in the presence of internal climate variability. Here we apply pattern-based detection and attribution methods as used in climate-change studies to separate anthropogenically forced ozone responses from internal variability, relying on trend pattern information as a function of month and height. The analysis uses satellite observations together with single-model and multi-model ensemble simulations to identify and quantify the month–height Antarctic ozone recovery ‘fingerprint’. We demonstrate that the data and simulations show compelling agreement in the fingerprint pattern of the ozone response to decreasing ODSs since 2005. We also show that ODS forcing has enhanced ozone internal variability during the austral spring, influencing detection of forced responses and their time of emergence. Our results provide robust statistical and physical evidence that actions taken under the Montreal Protocol to reduce ODSs are indeed resulting in the beginning of Antarctic ozone recovery, defined as increases in ozone consistent with expected month–height patterns.
